Button Board

Button Board

Great for use with all PRICOM products

Simple Input/Output Button Curcuit

Easy Terminal Strip Connections

Size: L- 1.5", W- 4", H- 0.5"

Board Only



Button Board Features

Designed specifically to work with Dream Players and all other PRICOM products.

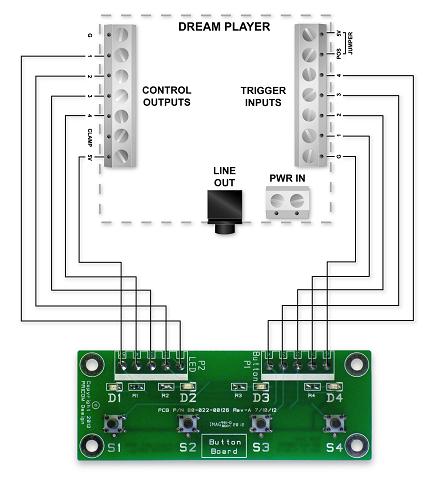

The PRICOM Button Board is a simple and easy to understand circuit of buttons and LED's. All connections are made using the on-board screw type terminal strips and are labeled to match the equivalent labels on The Dream Players. Simply match up the terminal positions of the Button Board with those of your Dream Player (as seen in the illustration below) and you're ready to go!

This board is unique in that the buttons and LED's are on the front of the board, but the terminal connections are on the back. This allows for more efficient mounting to a face plate or similar installation location. This board also has four on board LED's that can indicate the status of a track. These LED's are easily connected, using the corresponding terminal strips and can be supplied using 5 Volts DC from your Dream Player.

Button Board Videos

Button Board Wiring

Button Board Accessories

Dream Audio Players

The Dream Players are the perfect companion for the Button Board

Layout Lighting Solution

Trigger sequences on Layout Lighting using the Button Board

PNET Opto Input

Want to put triggers on your PNET system? The PNET Opto Input with the Button Board is the ticket!

Button Board Downloads

Button Board Quick Start

Complete PDF of the Button Board Quick Start Guide
